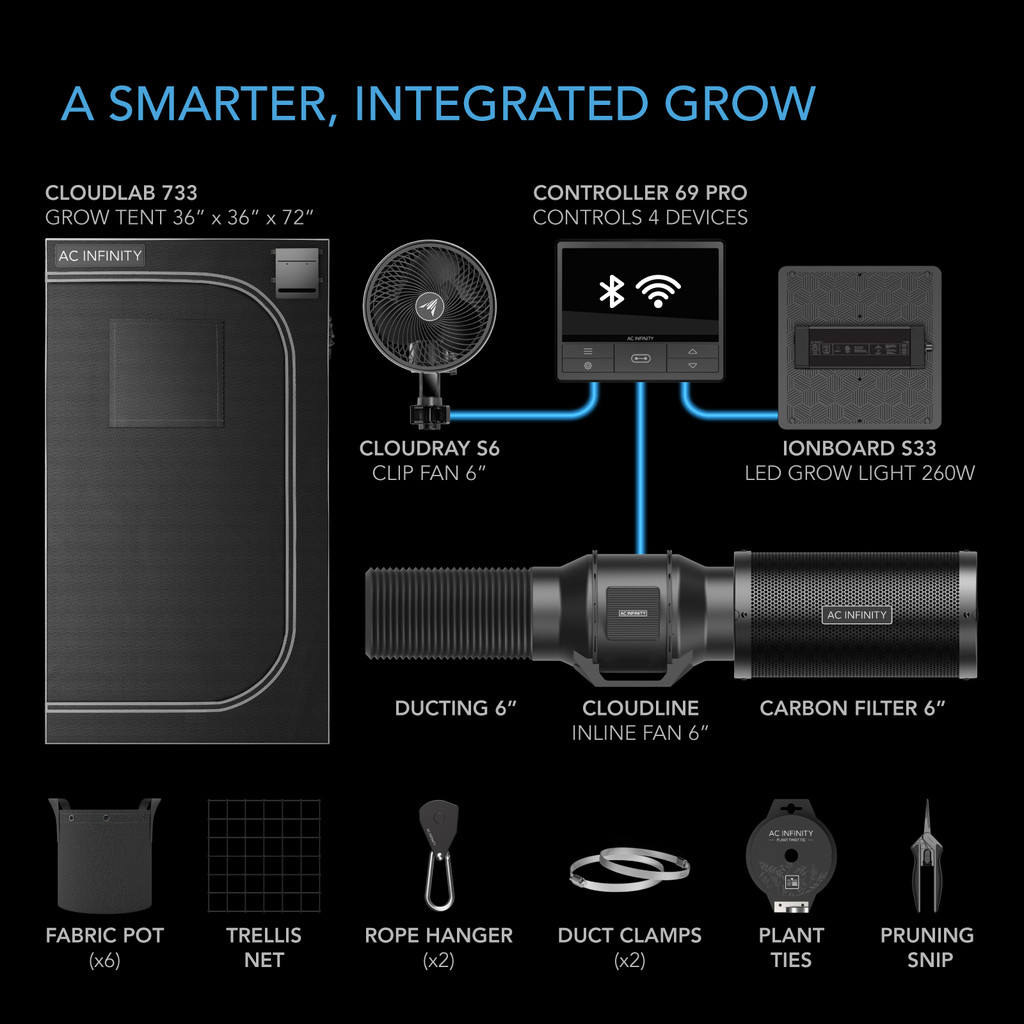

Advance Grow Kit
Smart Grow System
Smart Grow System
High-efficiency diodes provide consistent full-spectrum output at the lowest cost-per-watt.
Tent features a durable, water and light proof 2000D canvas with a frame that supports twice the weight of a standard grow tent.
This kit provides performance and power, offering air circulation, filtration, and odor control to support healthy plant growth, thanks to the EC inline fan, carbon filter and oscillating clip fan.
Connect to the largest, most intelligent grow ecosystem for seamless Wi-Fi app control, advanced programming, and real-time alerts to optimize growing conditions.
CLOUDLAB 733 · Model AC-CBA733
| Outer Material | Oxford Fabric |
|---|---|
| Inner Material | Mylar |
| Pole Material | Steel |
| Crossbar Weight Capacity | Up to 250 lb (113.4 kg) |
| Hanging Bars | 2 (+2 Extra) |
| Plant Capacity | 3 plants (5 gal.) |
| Tent Dimensions | 35.43" x 35.43" x 70.86" (90.0 x 90.0 x 180.0 cm) |
|---|---|
| Duct Ports | Ø 4 in. (100 mm) (×4), Ø 6 in. (150 mm) (×2), Ø 8 in. (200 mm) (×3) |
| Viewing Window | 13.77 x 39.37 in. (35.0 x 100.0 cm) |
| Side Intake Opening | 5.90 x 13.77 in. (15.0 x 35.0 cm) |
| Rear Intake Opening | 5.90 x 13.77 in. (15.0 x 35.0 cm) |
| Pole Thickness | 22 mm |
CLOUDLINE A6 · Model AI-CLA6
| Total Airflow | 352 CFM (598 m³/h) |
|---|---|
| Noise Level (Total) | 34 dBA |
| Plug Type | US Plug (NEMA 5-15 Type-B) |
| Static Pressure | 394 Pa |
| IP Rating | IP44 |
| Bearing Type | Dual Ball Bearings |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 hours |
| Fan Quality Approvals | CE, RoHS |
| CE Certification (Fan Only) | |
| RoHs Certification (Fan Only) | |
| Duct Size | Ø 6 in. (200 mm) |
|---|---|
| Overall Fan Dimensions | 7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm) |
| Mounting Hole Spacing | 3.15 x 2.36 in. (8.0 x 6.0 cm) |
| Screw Hole Size | Ø 0.236 in. (0.6 cm) |
| Controller Cable Length | 10 ft. (3.05 m) |
| Cord Length to Plug | 8 ft. (243.8 cm) |
| Voltage | 100–240 V AC |
| Frequency | 50/60 Hz |
| Maximum Power Draw | 65 W |
| Average Power Draw | 35 W |
| Current | 0.95 A |
| Operating Humidity | 35–85% RH |
| Operating Temperature | 32 to 140°F (0–60°C) |
CLOUDRAY S6 · Model AC-CCS6
| Maximum Airflow | 325 CFM (552 m³/h) |
|---|---|
| Noise Level | 31 dBA |
| IP Rating | IP54 |
| Rotation Range | 90° |
| Tilt Angle | 55° |
| Oscillation | Automatic Oscillation |
| Bearing Type | Dual Ball Bearings |
| Mounting Positions | Horizontal or Vertical |
| Lifespan | 67,000 hours |
| ETL Cert. (Fan Only) | |
| Blade Size | Ø 6 in. (150 mm) |
|---|---|
| Overall Dimensions | 9.73 x 11.82 in. (24.7 x 30.0 cm) |
| Power Cord Length | 8 ft. (2.44 m) |
| Static Pressure | 25 Pa |
| Operating Voltage | 100–240 V AC |
| Power | 11 W |
| Current | 0.14 A |
| Operating Humidity | 35–85% RH |
| Operating Temperature | 32 to 140°F (0–60°C) |
CLOUDCOM 6 · Model CTR92Q
| UIS Ports | 6 (24 with Expansion Hubs) |
|---|---|
| Port Compatibility | Devices and Sensors |
| Thread Mesh Connectivity | Up to 100 Devices |
| Connection | 2.4G + 5G |
| Display Type | Full Color TFT |
| Buttons | Capacitive Touch |
| Onboard Sensor | Temperature, Humidity, and VPD |
| Corded Sensor | Temperature, Humidity, and VPD |
| Width | 6.10 in. (15.5 cm) |
|---|---|
| Depth | 0.78 in. (2.0 cm) |
| Height | 3.07 in. (7.8 cm) |
| Display Size | 4.50 in. (11.4 cm) |
| Sensor Probe Length | 12 ft. (365.4 cm) |
| Wattage | 24 W |
| Voltage | 12 V DC |
| Wall Adapter Input | 100–240 V AC |
| Operating Temperature | 32° to 140°F |
| Operating Humidity | 35% to 85% RH |
IONBOARD 4 · Model AC-IBS33
| Coverage Area | 3 × 3 ft. (91 × 91 cm) |
|---|---|
| Diodes | Proprietary ACI Diodes |
| Total LED Chips | 640 |
| LED Driver | AC Infinity Proprietary Driver IB-260 |
| Spectrum | 660nm, 730nm, 3000K, 6500K |
| Efficiency (Per Diode) | 2.65 µmol/j |
| PPFD | 1726 PPFD |
| Controller | Digital Dimming Timer |
| Lifespan | 50,000 hours |
| ETL Cert. (Light Only) | |
| Light Dimensions | 18.50 x 18.50 x 2.24 in. (47.0 x 47.0 x 5.7 cm) |
|---|---|
| Driver Dimensions | 3.14 x 11.18 x 1.96 in. (8.0 x 28.4 x 5.0 cm) |
| Power | 260 W |
| Voltage | 100–277 V AC |
| Frequency | 50/60 Hz |
| Amps | 2.17 A @ 120V | 1.08A @ 240V | 0.94A @ 277V |
| Plug Type | US Plug (NEMA 1-15 Type-A) |
| Operating Humidity | 35–85% RH |
| Operating Temperature | 32 to 140°F (0–60°C) |
| Driver IP Rating | IP65 |
Carbon Filter 6 in. · Model AC-DCF6
| Flange Material | Aluminum |
|---|---|
| Flange Design | Reversible |
| Mesh Material | Rust-Resistant Galvanized Steel with Gunmetal Finish |
| Carbon Type | Australian RC412 Activated Carbon |
| Carbon Quality | 1200+ IAV |
| Duct Opening | Ø 6 in. (150 mm) |
|---|---|
| Overall Dimensions | 15.74 x 8.93 in. (40.0 x 22.7 cm) |
| Flange Length | 1.57 in. (4.0 cm) |
| Carbon Thickness | 38 mm |
| Maximum Airflow | 410 CFM (696 m³/h) |
Flexible Air Duct 6 in. · Model AI-DTA6-8
| Outer Layer | PVC Thermoplastic |
|---|---|
| Inner Material | Aluminum Foil |
| Inner Structure | Steel Spiral Wire |
| Duct Size | Ø 6 in. (150 mm) |
|---|---|
| Length | 8 ft. (2.44 m) |
