Outlet AI Overview

Introduction

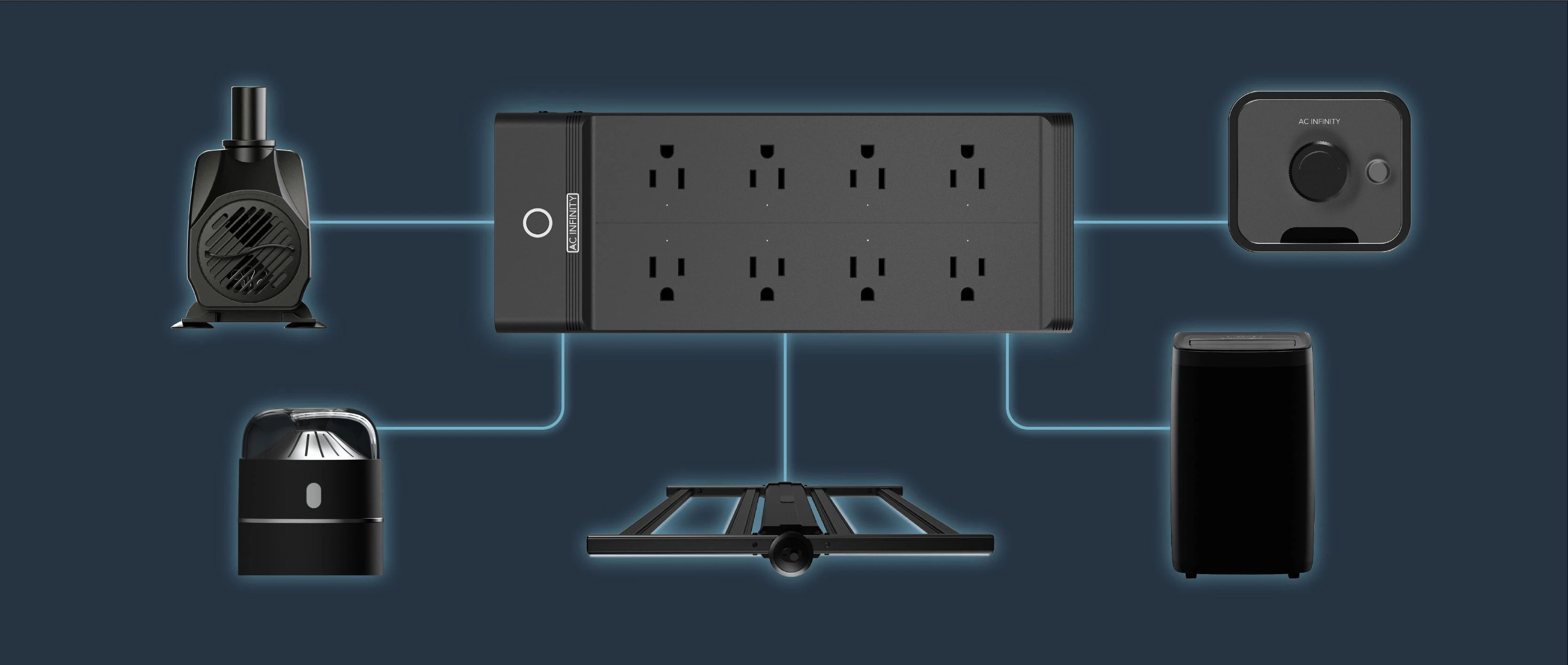

Welcome to the AC Infinity UIS™ Platform, the most advance and versatile environmental control ecosystem in the world! Choose from an expanding selection of equipment that can work together to achieve your ideal environment. Mix and match any eight to connect to our Outlet AI to provide each with their own advance programming, tailored to your application.

MODELS – Outlet AI, Outlet AI+

EQUIPMENT CONTROLLED – All UIS devices and equipment that auto-start when plugged in

SENSOR CONTROLLED – All UIS sensors

NUMBER OF EQUIPMENT – Independent Programming 4 Devices (Outlet AI) or 8 Devices (Outlet AI+)

CONNECTOR TYPE – Type B (NEMA 5-15)

CONTROL TYPE – ON/OFF

PROGRAMS – CO2, Soil, Water Detection, Hydro Triggers, AI Mode, Temperature and Humidity Triggers, VPD Triggers, Timers, Cycles, Schedules, Advance Programs via App

SETTINGS – Buffer, On MIN, On MAX

CLIMATE SENSORS – Temperature, Humidity, and VPD

APP CONNECTION – Bluetooth or Wi-Fi (2.4 Ghz)

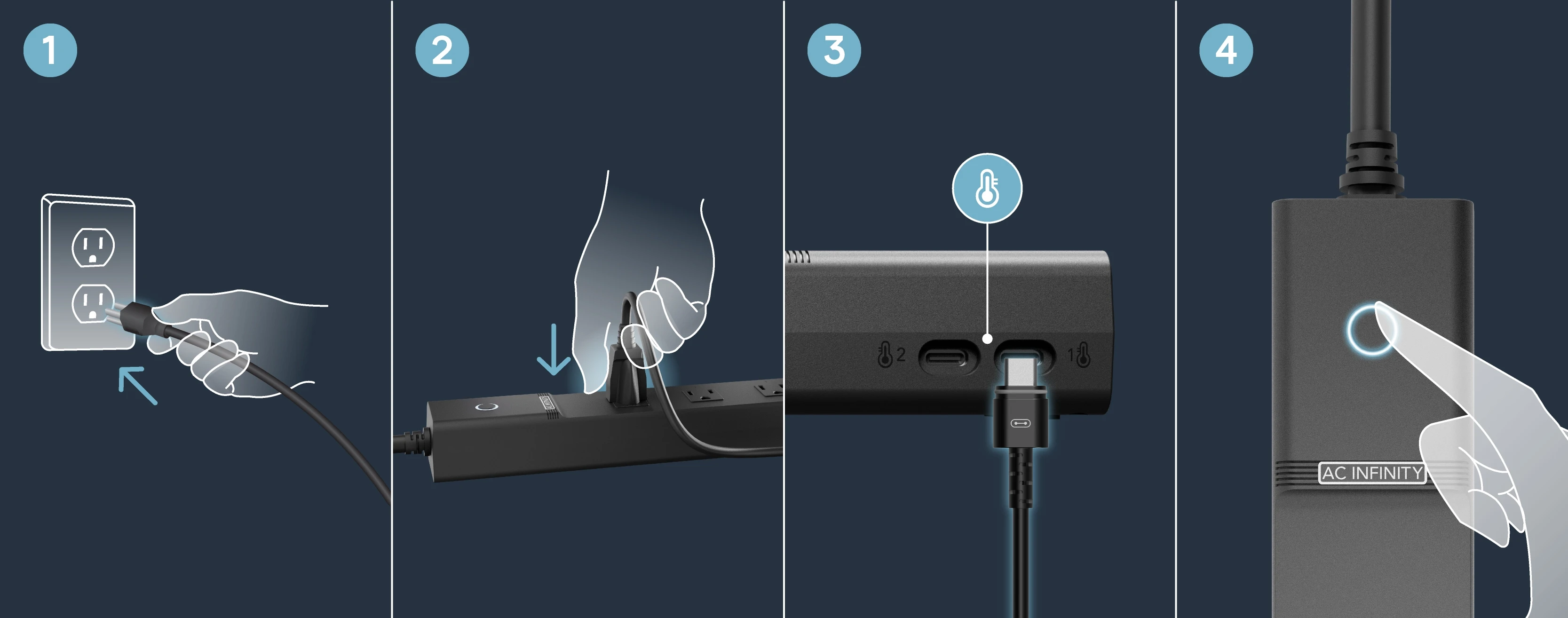

Quick Start

  1. Plug your outlet controller into an AC power outlet to power it.
  2. Plug your device into a socket. Confirm that it is compatible before usage. The power threshold must not exceed 1800W (15A).
  3. Plug the sensor probe into a sensor port.
  4. Press the power button to turn the outlet controller ON/OFF.

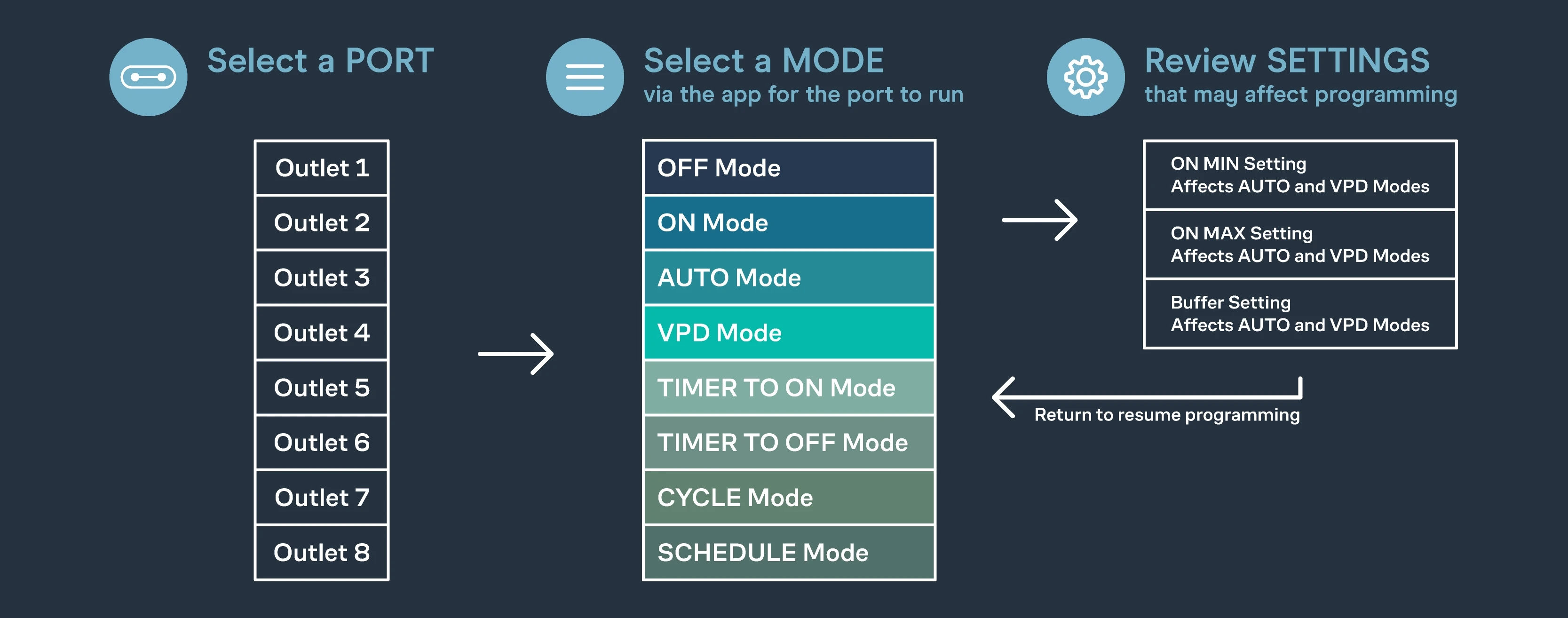

Programming Modes

  • OFF Mode – Set the device to turn off.
  • ON Mode – Set the device to run continuously at a level from 0 to 10.
  • AUTO Mode – Set temperature and humidity triggers that will turn the device on or off.
  • VPD Mode – Set VPD (vapor pressure deficit) triggers that will turn the device on or off.
  • TIMER TO ON Mode – Set a one-time countdown that will turn the device on once it ends.
  • TIMER TO OFF Mode – Set a one-time countdown that will turn the device off once it ends.
  • CYCLE Mode – Set an on and off duration that your device will repeat continuously.
  • SCHEDULE Mode – Set an on and off clock time that your device will repeat daily.

    • App Control, Alerts, and Advance Programs

    Connect your controller to the AC Infinity App to unlock advance programming, data graphs, alerts, and more. Follow the step-by-step instructions in the user manual, and then view the App Overview page to learn more about using the App.
