AC-RBF42-B
AIRTAP T4, Smart Register Booster Fan 4" x 12" Bronze
$59.99
- Next-Gen Ventilation: Intelligent register booster fan automatically responds to HVAC-driven temperature changes to improve airflow, helping eliminate hot and cold spots for consistent comfort in every room.
- Smart Vent System: Electronic vents automatically open when your HVAC system activates to maximize boosted airflow, then close when inactive to help prevent dust, pests, and debris from entering.

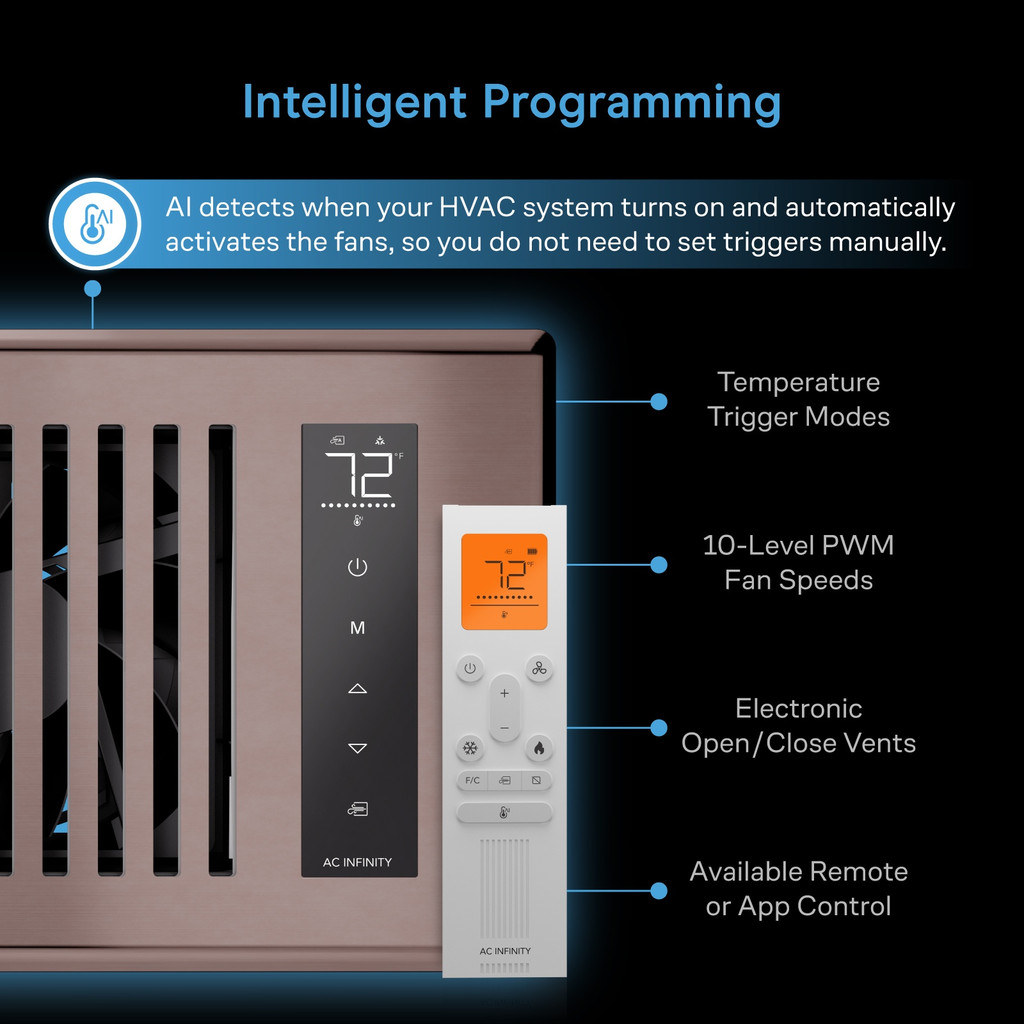

- Intelligent Controls: LCD display provides real-time room temperature monitoring and easy access to customizable cooling and heating triggers, fan speeds, timers, and operating settings for climate control.
- Smart Remote Access: Use the included IR remote for quick control, connect with Alexa or Google Home for voice commands, and unlock smart alerts, data charts, and advanced automations through the app.
- Measure Before Purchase: Designed exclusively for 4 x 12 in. duct openings, engineered with dual-ball bearing fans powered by a precision PWM-controlled motor, delivering powerful whisper-quiet airflow.
- Next-Gen Ventilation: Intelligent register booster fan automatically responds to HVAC-driven temperature changes to improve airflow, helping eliminate hot and cold spots for consistent comfort in every room.
- Smart Vent System: Electronic vents automatically open when your HVAC system activates to maximize boosted airflow, then close when inactive to help prevent dust, pests, and debris from entering.
- Intelligent Controls: LCD display provides real-time room temperature monitoring and easy access to customizable cooling and heating triggers, fan speeds, timers, and operating settings for climate control.
- Smart Remote Access: Use the included IR remote for quick control, connect with Alexa or Google Home for voice commands, and unlock smart alerts, data charts, and advanced automations through the app.
- Measure Before Purchase: Designed exclusively for 4 x 12 in. duct openings, engineered with dual-ball bearing fans powered by a precision PWM-controlled motor, delivering powerful whisper-quiet airflow.
| Product Identification | |
| Manufacturer | AC Infinity Inc. |
| Product Name | AIRTAP T4, Bronze |
| Product Model | AC-RBF42-B |
| UPC Code | 819137020641 |

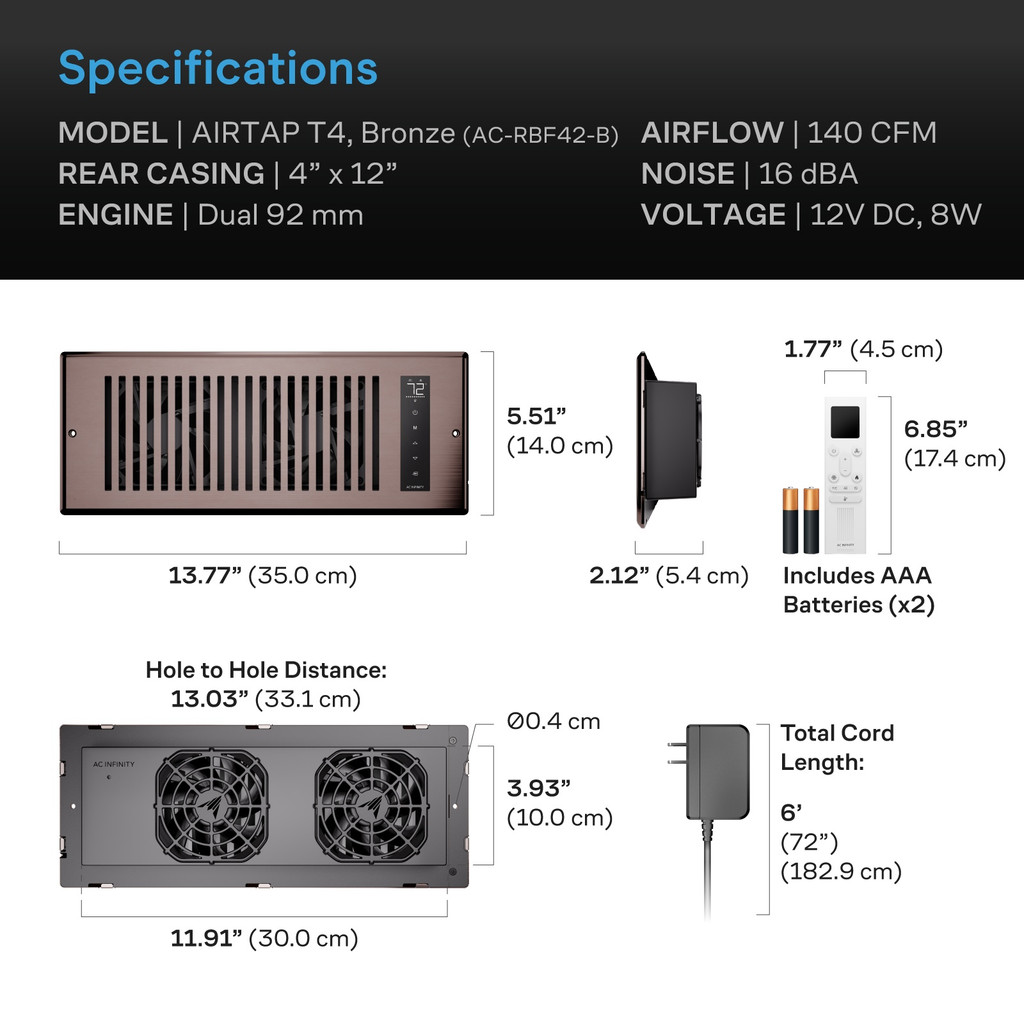

| Product and Mounting Dimensions - Fan Unit | |
| Total Dimensions | 13.77 x 5.51 x 2.12 in. (35.0 x 14.0 x 5.4 cm) |
| Backside Enclosure Dimensions | 11.91 x 3.93 in. (30.0 x 10.0 cm) |
| Hole to Hole Distance | 13.03 in. (33.1 cm) |
| Screw Hole Diameter | 0.197 in (0.4 cm) |
| Cord Length | 72 in. (6 feet) |
| Product Performance and Technical Specs | |
| Fits Register Sizes | 4 x 12 in. |
| Design | Bronze |
| Total Airflow | 140 CFM |
| Total Noise | 16 dBA |
| Static Pressure | 6.5 mm-H2O |
| Operating Voltage | 12V DC |
| Power | 8 W |
| Current | 0.4 A |
| Wall Adapter Input | 100 to 240V AC |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 0 to 158°F |
| Fan Bearings | Dual Ball |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
| UL Certification (Fans Only) |  PDF |
| CE Certification (Whole Product) | PDF |
| RoHS Cert. (Whole Product) | PDF |
| Product Manuals | |
| Fan Unit Manual | PDF |
| Programming Guide | Setup Instructions |
