- Next-Gen Lighting: Advanced LED grow light combines an optimized full-spectrum design and precision diode positioning to maximize plant yields with 220W of high-output power and complete 2x4 coverage.
- Maximum Efficiency: Algorithmically spaced LEDs deliver uniform PAR, deep canopy penetration, and edge-to-edge coverage, powered by proprietary diodes engineered to maximize efficiency, light output, and growing.
- Thermally Advanced: Enhanced heat sink design improves thermal dissipation to maintain peak performance, reduce excess heat buildup, and extend the operational lifespan of the grow light and its components.
- Custom Controls: Fine-tune brightness from 0 to 100% using the integrated dimmer, or connect with smart controllers to unlock automated grow cycles, scheduling, advanced programming, and app control.
- Built for Growers: Constructed with a durable unibody aluminum board and IP-65 protection, this fixture is engineered to withstand elevated heat, humidity, and the demanding conditions of indoor grow environments.
Product Description

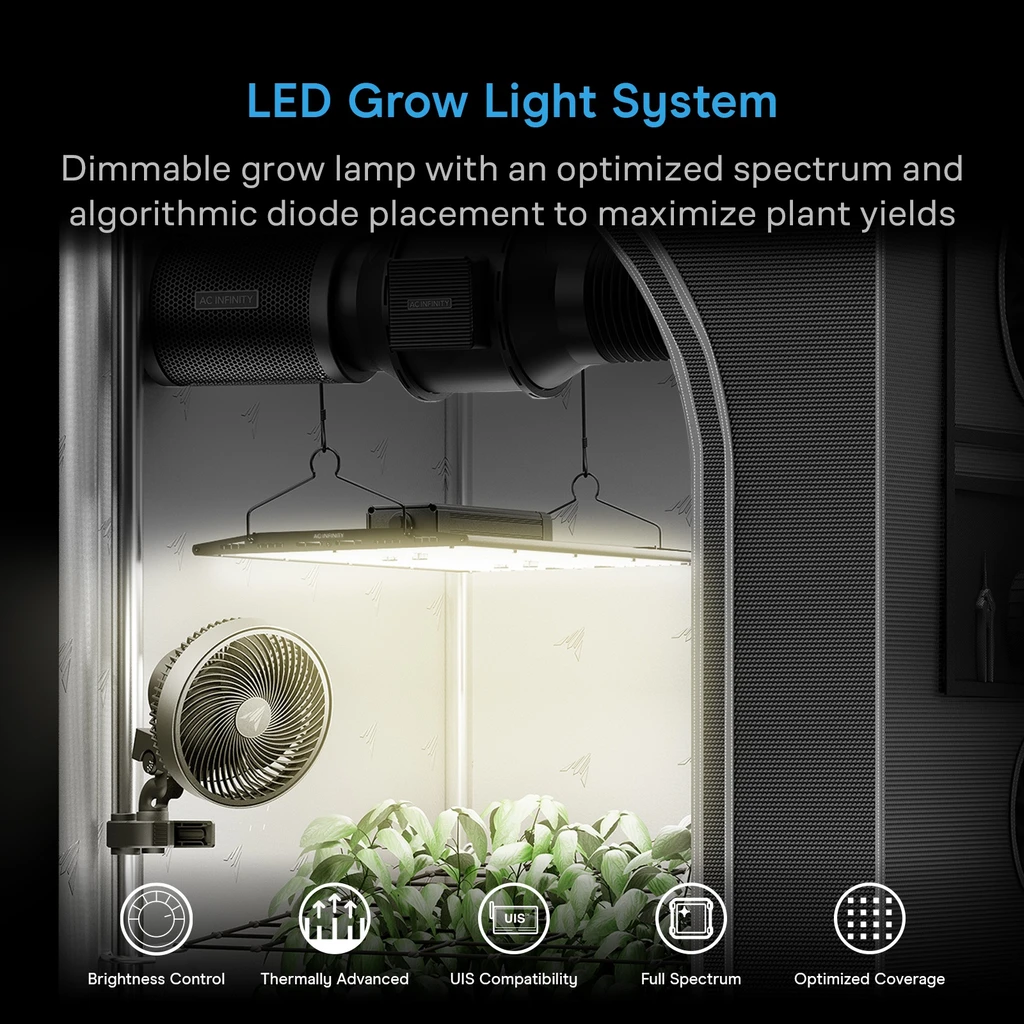

A full spectrum LED grow light designed with algorithmically positioned diodes to maximize plant yields. Features a proprietary driver that enables light dimming and can connect with our smart controllers. These enable pairing with additional LED light fixtures when using expansion dongles (sold separately). Built on a fanless, unibody aluminum board to dissipate heat and extend the diodes’ lifetime. All components are sealed to IP-65 standards to maintain peak performance even in a grow environment with higher temperatures and humidity. Includes a pair of metal bar hangers and rope hangers. This LED grow fixture is designed for grow tents with interior reflective Mylar lining, and used to cultivate a variety of plants, fruits, and vegetables. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to unite with the AC Infinity app over WiFi to achieve your ideal environment.
Optimized Spectrum
Each light contains 3000K and 6500K white diodes specifically formulated to help maximize plant yields. The diodes are then algorithmically positioned within the board to provide the most uniform PAR map coverage and deepest light penetration. These features help achieve the highest growth rates in germination, vegetative, and flowering stages.
Future Ready Controls

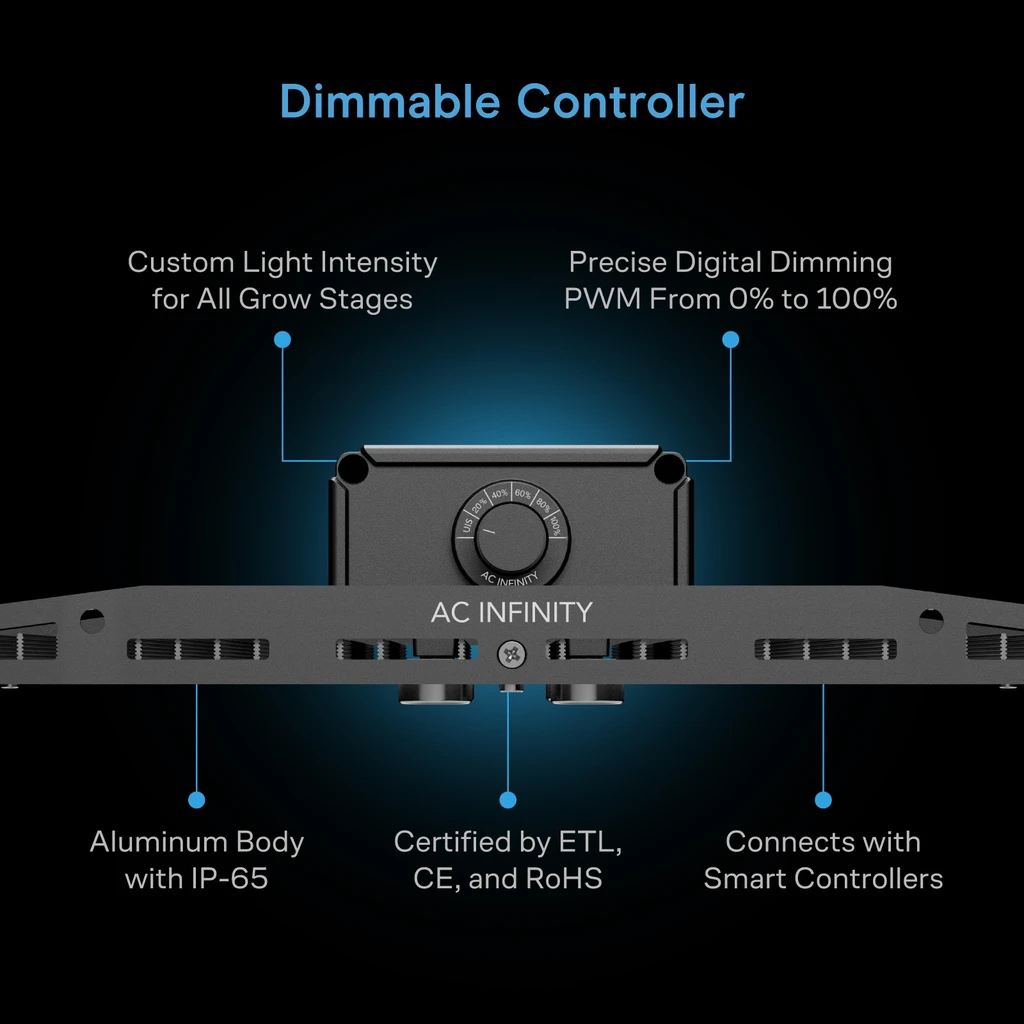

Features a proprietary LED driver that enables 0-100% dimming with an easy-to-use control knob that adjusts light intensity in 20% increments. The driver also contains a port that enables daisy chaining and can connect with our smart controllers to access grow cycles, scheduling, app control, and more. Join our ecosystem of controllers and grow equipment including fans and lights, all working together to achieve the optimal environment.
Compatible Grow Tents
Find the ideal grow tent that best complements this lighting system. Each pairing is designed to help you achieve balanced light coverage for optimized performance across every stage of growth.
- CLOUDLAB Advance Propagation Grow Tent 24" x 24" x 36"
- CLOUDLAB 422 – Advance Grow Tent 24" x 24" x 48"
- CLOUDLAB 722 – Advance Grow Tent 24" x 24" x 72"
- CLOUDLAB 632 – Advance Grow Tent 36" x 24" x 72"
- CLOUDLAB 642 – Advance Grow Tent 48" x 24" x 72"
- CLOUDLAB 733 – Advance Grow Tent 36" x 36" x 72"
- CLOUDLAB 844 – Advance Grow Tent 48" x 48" x 80"
- CLOUDLAB 866 – Advance Grow Tent 60" x 60" x 80"
- CLOUDLAB 811 – Advance Grow Tent 120" x 120" x 80"
- CLOUDLAB 816 – Advance Grow Tent 120" x 60" x 80"
- CLOUDLAB 899 – Advance Grow Tent 96" x 96" x 80"
- CLOUDLAB 894 – Advance Grow Tent 96" x 48" x 80"
- CLOUDLAB 632D – Advance Grow Tent 36" x 24" x 72"
- CLOUDLAB 743D – Advance Grow Tent 48" x 36" x 72"
- CLOUDLAB 864D – Advance Grow Tent 60" x 48" x 80"
| Product Identification | |
| Manufacturer | AC Infinity Inc. |
| Product Name | IONBOARD S24 |
| Product Model | AC-IBS24 |
| UPC Code | 819137022522 |
| Product and Mounting Dimensions | |
| Light Dimensions | 11.81 x 23.62 in. (30.0 x 60.0 cm) |
| LED Board Thickness | 0.43 in. (1.1 cm) |
| Driver Dimensions | 8.62 x 1.57 in. (21.9 x 4.0 cm) |
| Product Performance and Technical Specs | |
| Coverage | 2 x 4 ft. |
| Diodes | Proprietary ACI Diodes |
| LED Chip Count | 544 |
| LED Driver | AC Infinity Proprietary Driver IB-200 |
| Efficiency | 2.65 µmol/j |
| PPFD | 1726 PPFD |
| Spectrum | 660nm, 730nm, 3000K, 6500K |
| Wattage | 220 W |
| Voltage | 100-277V AC |
| Frequency | 50/60 Hz |
| Amps | 1.84 A @ 120V | 0.92 A @ 240V | 0.80 A @ 277V |
| Controller | Digital Dimming Timer |
| Power Connector Type | US Plug (NEMA 1-15 Type-A) |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Life Expectancy | 50,000 Hours |
| ETL Cert. (Whole Product) | |
| Product Manual | |
| Product Manual | |
