AC-CRT10
CLOUDWAY T10, Whole House Fan 10" with Temperature Controller
$499.00
- A whole house attic fan designed to cool and ventilate entire homes by exhausting hot air from indoor spaces.
- Dynamic temperature, humidity & VPD programming, with timers, cycles, scheduling, and minimum speed.
- Remotely connect to our WiFi app to access advance programs, view climate data, and set automation.
- Utilizes a PWM-controlled EC motor that results in quieter and more energy-efficient fans than most others.
- Duct Size: 10” | Dimensions: 9.8 x 15.1 x 11.3 in. | Airflow: 791 CFM | Noise: 48 dBA | Bearings: Dual Ball
Product Description
A whole house fan system designed to be installed in attics to keep homes cool; it exhausts hot air from indoor spaces while creating passive intake to pull in fresh air. Each attic fan is controlled by a WiFi-enabled digital controller, featuring a smart thermostat with triggers, fan speed control, status alerts, and more. The fan uses a PWM-controlled EC motor that allows it to run efficiently and quietly at a maximum of 48 dBA. This kit includes 4-layer ducting, stainless steel duct clamps and grille, and a 2-door shutter that blocks attic air from flowing into your home when the fan is not in use.
Intelligent Controller
CONTROLLER 69 PRO features smart programming like temperature and humidity triggers that activate whenever your house gets too hot or humid. Maintain a consistently cooler climate by setting a minimum fan speed that will run continuously and only increase when triggered. Timer, cycle, and schedule modes add custom on-demand activation for even greater control. Securely connect to the AC Infinity app via WiFi to utilize automation capabilities from anywhere throughout the day. Access your fan remotely, unlock advance programs, set notifications, view historical climate charts, and export CSV data.
Efficient Performance
The PWM (Pulse Width Modulation) controlled motor not only spins the fan quietly, but also consumes up to 95% less power than air conditioner units. The attic fan has a 50,000-hour continuous run lifespan, using dual ball bearings that allow omnidirectional mounting. It is also IP-44 rated to resist dust and moisture while performing in most humid environments. The insulated damper uses gravity-fed shutters that close the opening when the whole house fan is not in use, keeping attic air from entering your home.
- A whole house attic fan designed to cool and ventilate entire homes by exhausting hot air from indoor spaces.
- Dynamic temperature, humidity & VPD programming, with timers, cycles, scheduling, and minimum speed.
- Remotely connect to our WiFi app to access advance programs, view climate data, and set automation.
- Utilizes a PWM-controlled EC motor that results in quieter and more energy-efficient fans than most others.
- Duct Size: 10” | Dimensions: 9.8 x 15.1 x 11.3 in. | Airflow: 791 CFM | Noise: 48 dBA | Bearings: Dual Ball
Product Description
A whole house fan system designed to be installed in attics to keep homes cool; it exhausts hot air from indoor spaces while creating passive intake to pull in fresh air. Each attic fan is controlled by a WiFi-enabled digital controller, featuring a smart thermostat with triggers, fan speed control, status alerts, and more. The fan uses a PWM-controlled EC motor that allows it to run efficiently and quietly at a maximum of 48 dBA. This kit includes 4-layer ducting, stainless steel duct clamps and grille, and a 2-door shutter that blocks attic air from flowing into your home when the fan is not in use.
Intelligent Controller
CONTROLLER 69 PRO features smart programming like temperature and humidity triggers that activate whenever your house gets too hot or humid. Maintain a consistently cooler climate by setting a minimum fan speed that will run continuously and only increase when triggered. Timer, cycle, and schedule modes add custom on-demand activation for even greater control. Securely connect to the AC Infinity app via WiFi to utilize automation capabilities from anywhere throughout the day. Access your fan remotely, unlock advance programs, set notifications, view historical climate charts, and export CSV data.
Efficient Performance
The PWM (Pulse Width Modulation) controlled motor not only spins the fan quietly, but also consumes up to 95% less power than air conditioner units. The attic fan has a 50,000-hour continuous run lifespan, using dual ball bearings that allow omnidirectional mounting. It is also IP-44 rated to resist dust and moisture while performing in most humid environments. The insulated damper uses gravity-fed shutters that close the opening when the whole house fan is not in use, keeping attic air from entering your home.
| Product Identification | |
| Manufacturer | AC Infinity Inc. |
| Product Name | CLOUDWAY T10 |
| Product Model | AC-CRT10 |
| UPC Code | 819137021082 |

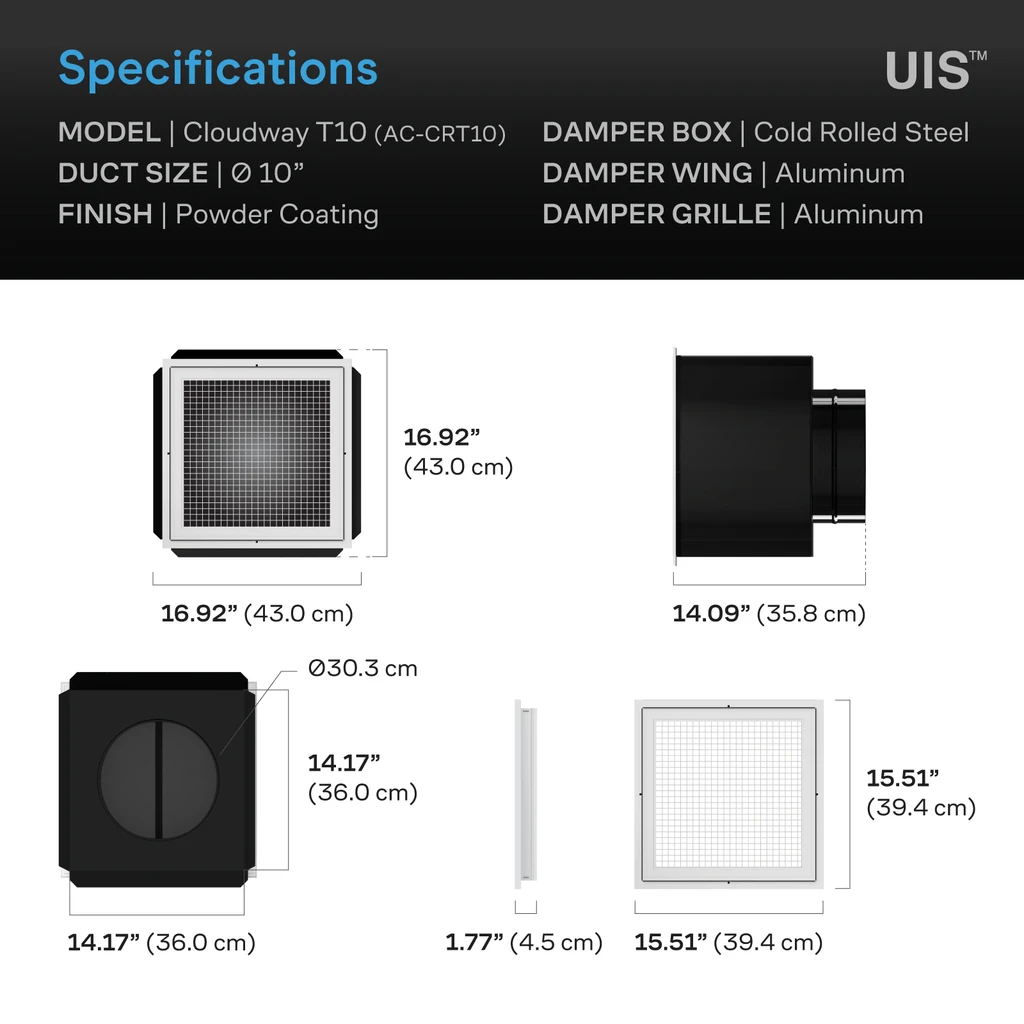

| Product and Mounting Dimensions - Fan Unit | |
| Duct Size | 10" |
| Duct Tube Length | 6 ft. |
| Total Dimensions | 9.81 x 15.07 x 11.30 in. (24.9 x 38.6 x 28.6 cm) |
| Mounting Hole-To-Hole Distance | 5.90 x 5.90 in. (15.0 x 15.0 cm) |
| Screw Hole Diameter | 0.472 in. (1.2 cm) |
| Cord Length to Controller | 120 in. (10 feet) |
| Cord Length to Plug | 96 in. (8 feet) |
| Product and Mounting Dimensions - Controller | |
| Total Dimensions | 3.66 x 3.11 x 0.98 in. (9.3 x 7.9 x 2.5 cm) |
| Display Size | 3.5 x 1.4 in. (9 x 3.5 cm) |
| Sensor Probe Length | 144 in. (12 feet) |
| Product Performance and Technical Specs | |
| Total Airflow | 791 CFM |
| Total Noise | 48 dBA |
| Static Pressure | 448 Pa |
| Voltage | 100-240V AC |
| Frequency | 50/60Hz |
| Max Power Draw | 247 W |
| Average Power Usage | 150 W |
| Current | 2.7 A |
| Power Connector Type | US Plug (NEMA 1-15 Type-A) |
| Wall Adapter Input | 100 to 120V AC |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 0 to 140°F |
| Ingress Protection | IP 44 |
| Fan Bearings | Dual Ball |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
| Fan Quality Approvals | CE, RoHS |
| CE Certification (Whole Product) |  PDF |
| RoHS Cert. (Whole Product) | PDF |
| Product Manual | |
| Product Manual | PDF |
