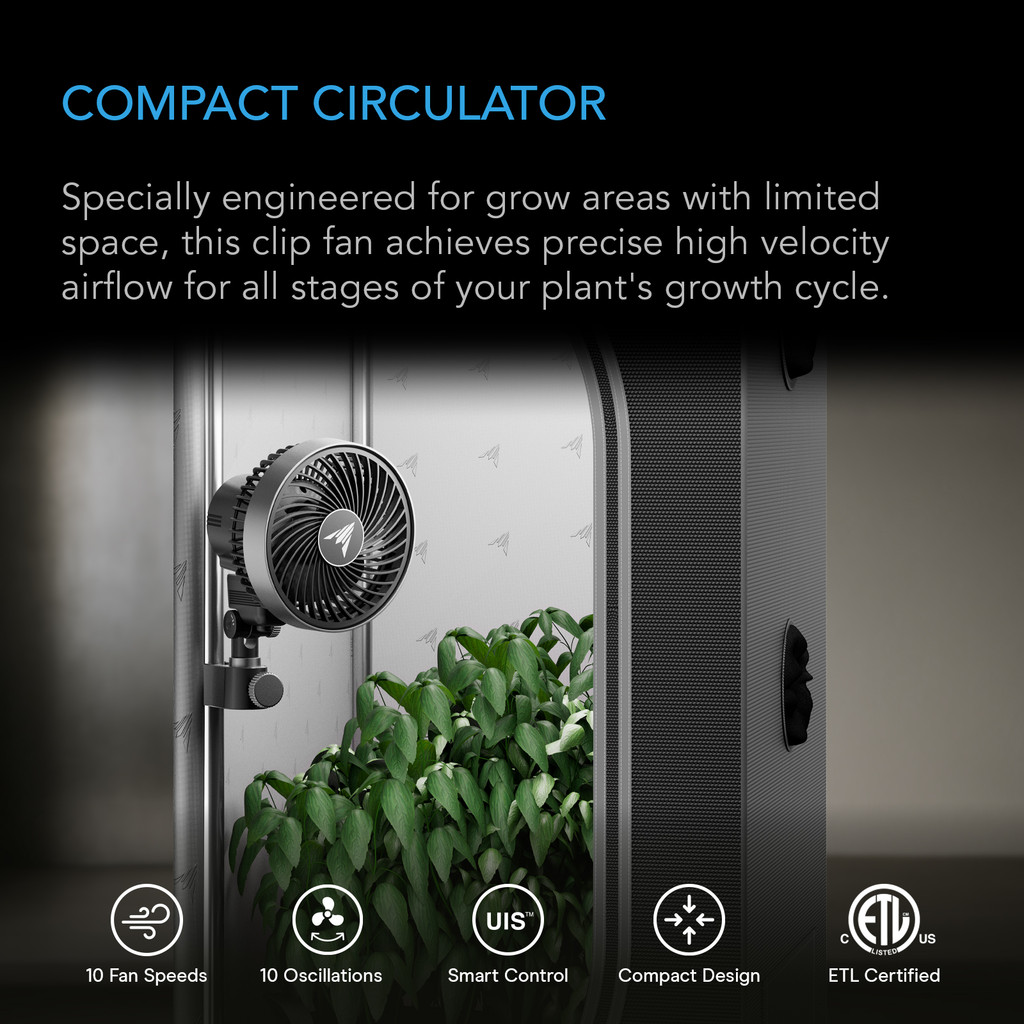

- Ultra-compact circulator engineered to deliver precise high velocity airflow in grow setups with limited spacing.
- Specialized high static pressure design achieves superior circulation in tight spaces, outperforming even larger clip fans.
- Low-profile form factor houses a miniaturized EC motor with dual-ball bearings and IP54 rating for maximized lifespan.
- Maintains 10 oscillation ranges to focus on targeted areas or achieve wide coverage while avoiding obstacles.
- Uncompromised 10 speeds and 10 dynamic wind modes to simulate outdoor airflow for optimal plant growth.
Product Description
A highly innovative clip fan designed to deliver targeted circulation and optimize each stage of your plant’s grow cycle. Get unprecedented customization capabilities for complete airflow control using this grow tent clip-on fan’s 10 speed levels, 10 dynamic wind modes, and 10 oscillation settings. The specialized compact motor achieves a higher wind velocity than that of larger clip fans (at maximum speeds), ensuring full space coverage. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to unite with the AC Infinity app over WiFi to achieve your ideal environment.

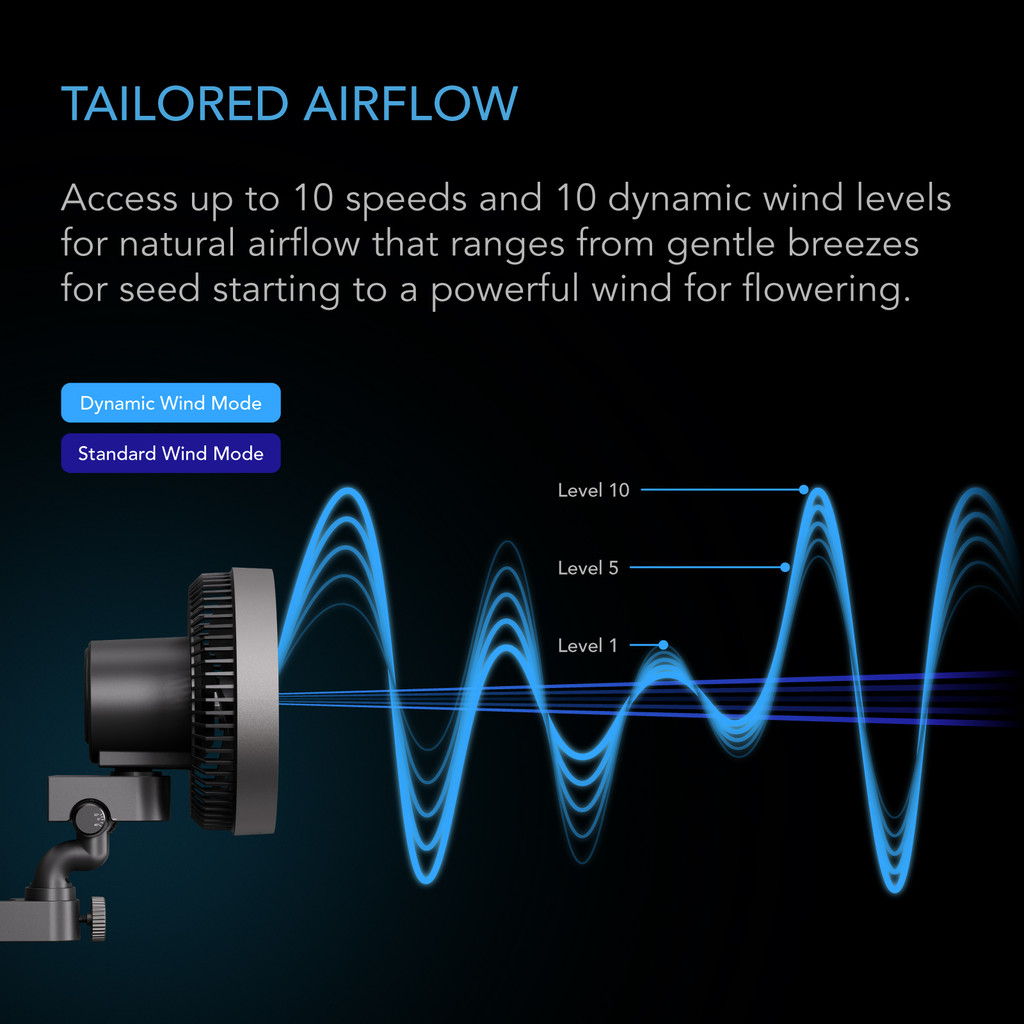

Tailored, Custom Airflow
Access ten digital speeds plus ten dynamic wind modes for customizable airflow that varies between levels to simulate an outdoor environment, ensuring healthier growth with reduced stress on your plants. For even greater control, utilize the ten oscillation levels that deliver focused circulation to specific spots or offer the widest reach possible while avoiding obstacles. With this, you can set precise circulation for any plant growth stage, from ultra-gentle breezes for germination and seedlings to a powerful airflow for vegetative and flowering.

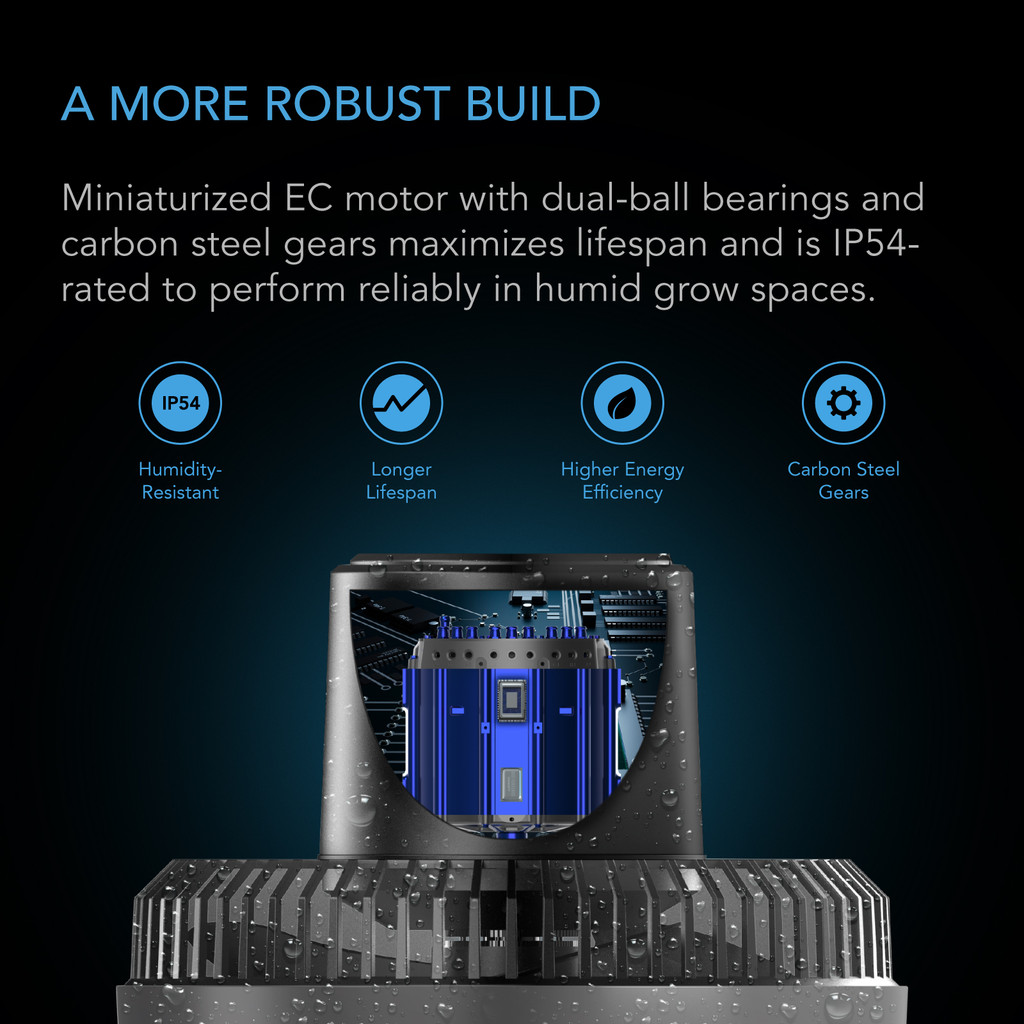

Compact Engineering
This clip fan utilizes a small form factor and a high static pressure design that produces superior circulation in tight spaces, delivering greater wind velocity when compared to larger fans. Its miniaturized EC motor with carbon steel gears and dual-ball bearings maximizes efficiency and control, ensuring strong, consistent airflow. A space-saving metal clamp with a vise-grip-style design ensures a dependable hold on tent poles.
Product Identification | |
Manufacturer | AC Infinity Inc. |
Product Name | CLOUDRAY S4 |
Product Model | AC-CCS4 |
UPC Code | 819137025066 |

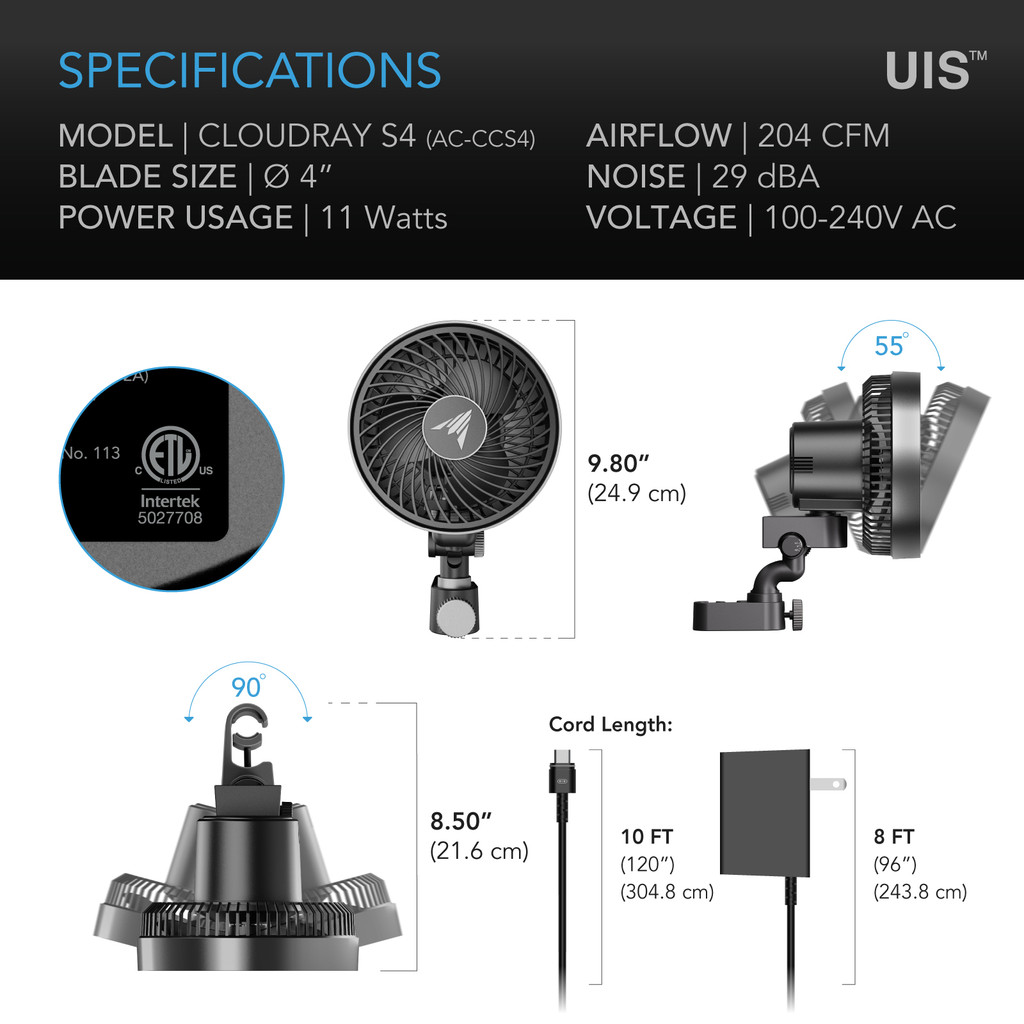

Product and Mounting Dimensions - Fan Unit | |
Impeller Size | 4.0" |
Total Dimensions | 9.73 x 11.82 in. (24.7 x 30.0 cm) |
Cord Length to Plug | 96 in. (8 feet) |
Product Performance and Technical Specs | |
Maximum Airflow | 204 CFM |
Total Noise | 29 dBA |
Static Pressure | 23 Pa |
Operating Voltage | 100-240V AC |
Power | 11 W |
Current | 0.16 A |
Operating Humidity | 35 to 85% RH |
Operating Temperature | 32 to 140°F |
Waterproof Rating | IP-54 |
Rotation Range | 90° |
Tilt Angle | 55° |
Oscillation | Automatic Oscillation |
Fan Bearings | Dual Ball Bearing |
Mounting Positions | Horizontal or Vertical |
Life Expectancy | 67,000 Hours |
ETL Cert. (Whole Product) | ![]() |
Product Manual | |
Product Manual | ![]() |
