AC-IF7X
IONFRAME A7, Grow Light 700W, Full Spectrum LED 4x5 Coverage
$499.00
- Engineered for Versatile Grow Environments: This powerful 700W light pairs efficient LEDs with optimized thermal design for reliable output and coverage up to 4 x 5 grow spaces per light, expandable with daisy-chain connectivity.

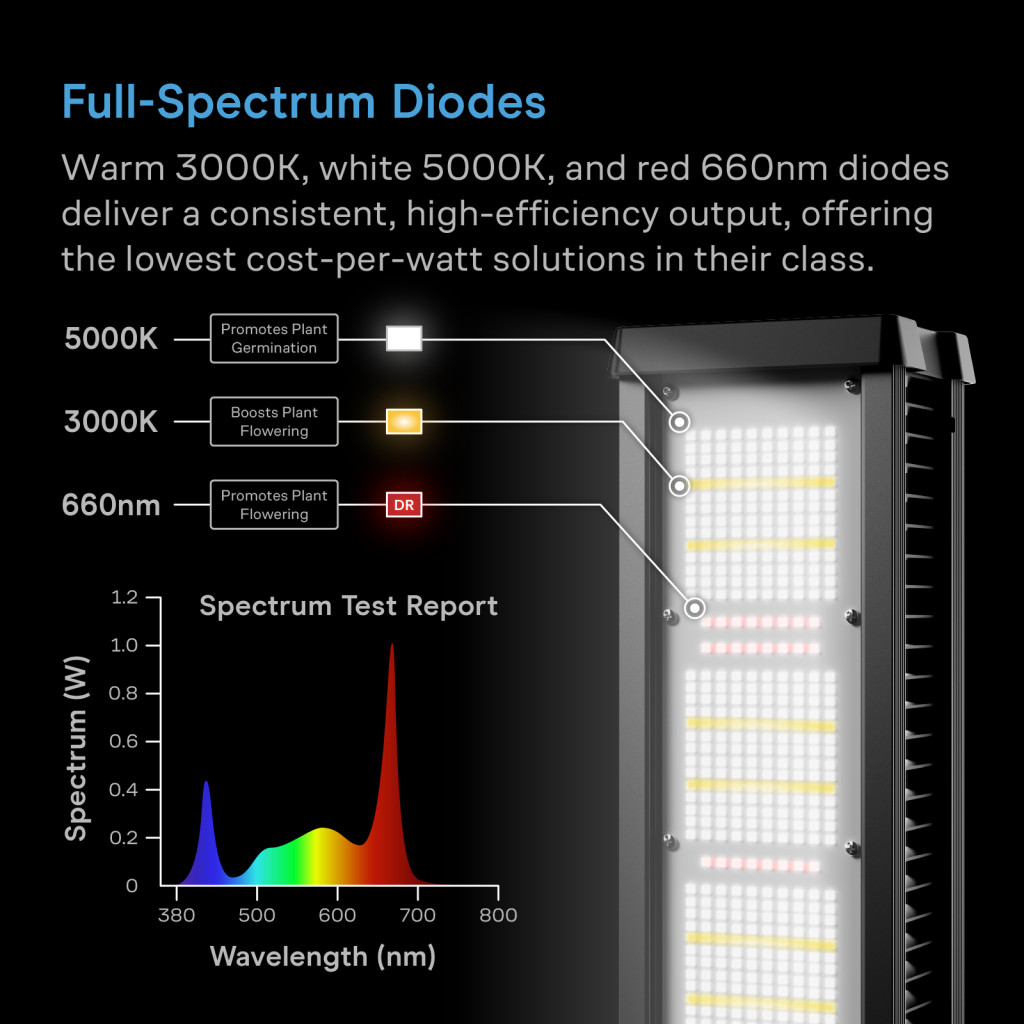

- Efficient, Cost-Optimized Output: Warm 3000K, white 5000K, and 660nm red diodes deliver a consistent, high-efficiency performance while providing complete light output that promotes germination and boosts flowering.
- Thermal Performance Engineered: Optimized IP67-rated build and thick aluminum heatsink are built to withstand high humidity, and increase surface area to improve heat dissipation, with a detached driver to help reduce thermal stress.
- Scalable Control Integration: Daisy-chain capable using the RJ-11 commercial market standard, allowing multiple units to connect in series, with an included Type-A adapter to expand your grow and share programming.
- Integrated Ecosystem: An included UIS adapter allows you to connect your light to any of our AI controllers or outlets, unlocking advanced controls and access to the AC Infinity app for remote automations and climate data.
- Engineered for Versatile Grow Environments: This powerful 700W light pairs efficient LEDs with optimized thermal design for reliable output and coverage up to 4 x 5 grow spaces per light, expandable with daisy-chain connectivity.
- Efficient, Cost-Optimized Output: Warm 3000K, white 5000K, and 660nm red diodes deliver a consistent, high-efficiency performance while providing complete light output that promotes germination and boosts flowering.
- Thermal Performance Engineered: Optimized IP67-rated build and thick aluminum heatsink are built to withstand high humidity, and increase surface area to improve heat dissipation, with a detached driver to help reduce thermal stress.
- Scalable Control Integration: Daisy-chain capable using the RJ-11 commercial market standard, allowing multiple units to connect in series, with an included Type-A adapter to expand your grow and share programming.
- Integrated Ecosystem: An included UIS adapter allows you to connect your light to any of our AI controllers or outlets, unlocking advanced controls and access to the AC Infinity app for remote automations and climate data.
| Product Identification | |
| Manufacturer | AC Infinity Inc. |
| Product Name | IONFRAME A7 |
| Product Model | AC-IF7X |
| UPC Code | 819137025103 |
| Product and Mounting Dimensions | |
| Light Dimensions | 42.91 x 4.21 x 3.74 in. (109.0 x 10.7 x 9.5 cm) |
| Product Performance and Technical Specs | |
| Coverage | 4 x 5 ft. |
| Diodes | Proprietary ACI Diodes |
| Spectrum | 395nm, 660nm, 730nm, 3000K, 5000K |
| Chip Count (Total) | 1808 |
| Efficiency (Single Diode) | 3.14 µmol/J |
| PPFD | 2951 PPFD |
| Wattage | 700 W |
| Voltage | 100-277V AC |
| Frequency | 50/60 Hz |
| Power Connector Type | US Plug (NEMA 1-15 Type-A) |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Waterproof Rating | IP-67 |
| Life Expectancy | 50,000 Hours |
| ETL Certification |  PDF |
| Product Manual | |
| Product Manual | PDF |
