When LED grow lights first replaced traditional HID fixtures, they solved one of the industry's biggest problems: heat. Since then, manufacturers have focused on improving efficiency, light spectrum, and smart controls. While those advancements have dramatically improved indoor cultivation, one challenge has remained largely unchanged: fixed light distribution.

Most grow lights illuminate from a single, static position. Even as plants grow and canopies become uneven, the light itself cannot adapt. The result is often hotspots directly beneath the fixture, lower PPFD around the edges, and inconsistent growth across the canopy.

The AC Infinity IONPRIME Series takes a different approach.

Rather than asking growers to adapt their plants to the light, the IONPRIME Series lets the light adapt to the plants. Featuring independently adjustable LED bars, intelligent lighting controls, and an optimized full-spectrum output, these fixtures give growers unprecedented control over where their light goes and how it performs. As part of AC Infinity's multi-angle grow light category, the series includes the IONPRIME 6, IONPRIME 8, and IONPRIME 10, each designed for larger grow spaces while delivering even, customizable light coverage.

Why Adjustable Light Bars Matter

Lighting is one of the most important variables in indoor gardening. Even with a high-output fixture, poor distribution can leave portions of your canopy underlit while other areas receive more intensity than necessary.

Traditional bar-style grow lights use fixed LED bars. Once installed, the distribution pattern is set. If your canopy develops unevenly or certain areas require additional coverage, there is little you can do beyond changing fixture height or adding supplemental lighting.

The IONPRIME Series changes this by allowing each individual LED bar to rotate up to 180 degrees. Instead of simply raising or lowering your fixture, you can redirect light exactly where it is needed to achieve more uniform canopy coverage while minimizing hotspots. This adjustable approach is the core idea behind AC Infinity's broader multi-angle grow light lineup.

This level of flexibility makes it easier to accommodate:

• Uneven canopies
• Plant training techniques
• Multi-tiered growth
• Corner coverage
• Wide or irregular plant layouts

Instead of wasting photons where they aren't needed, you can direct more usable light toward productive growth.

Uniform Light Creates More Consistent Growth

Plants respond to light intensity throughout every stage of development. When some plants receive significantly more light than others, growth becomes inconsistent.

You may notice:

• Taller plants directly beneath the fixture
• Smaller flowers around the perimeter
• Uneven canopy development
• Different maturation rates

By adjusting each LED bar independently, growers can produce a much more balanced PPFD distribution across the entire growing area.

A more uniform canopy means:

• More consistent vegetative growth
• Better flower development
• Improved lower canopy performance
• Higher-quality harvests
• More efficient use of available light

Rather than concentrating the majority of the fixture's output in the center, IONPRIME allows you to spread usable light where your plants can actually benefit from it.

Full-Spectrum Lighting for Every Growth Stage

Light distribution is only part of the equation. Plants also depend on receiving the correct spectrum throughout their lifecycle.

The IONPRIME Series uses a proprietary full-spectrum LED configuration engineered to support:

• Seedling development
• Vegetative growth
• Flower production
• Overall plant health

A balanced spectrum allows growers to run the same fixture from start to finish without changing bulbs or supplementing with additional fixtures.

By combining spectrum optimization with adjustable light positioning, IONPRIME helps ensure every section of the canopy receives both the intensity and spectral quality required for vigorous growth.

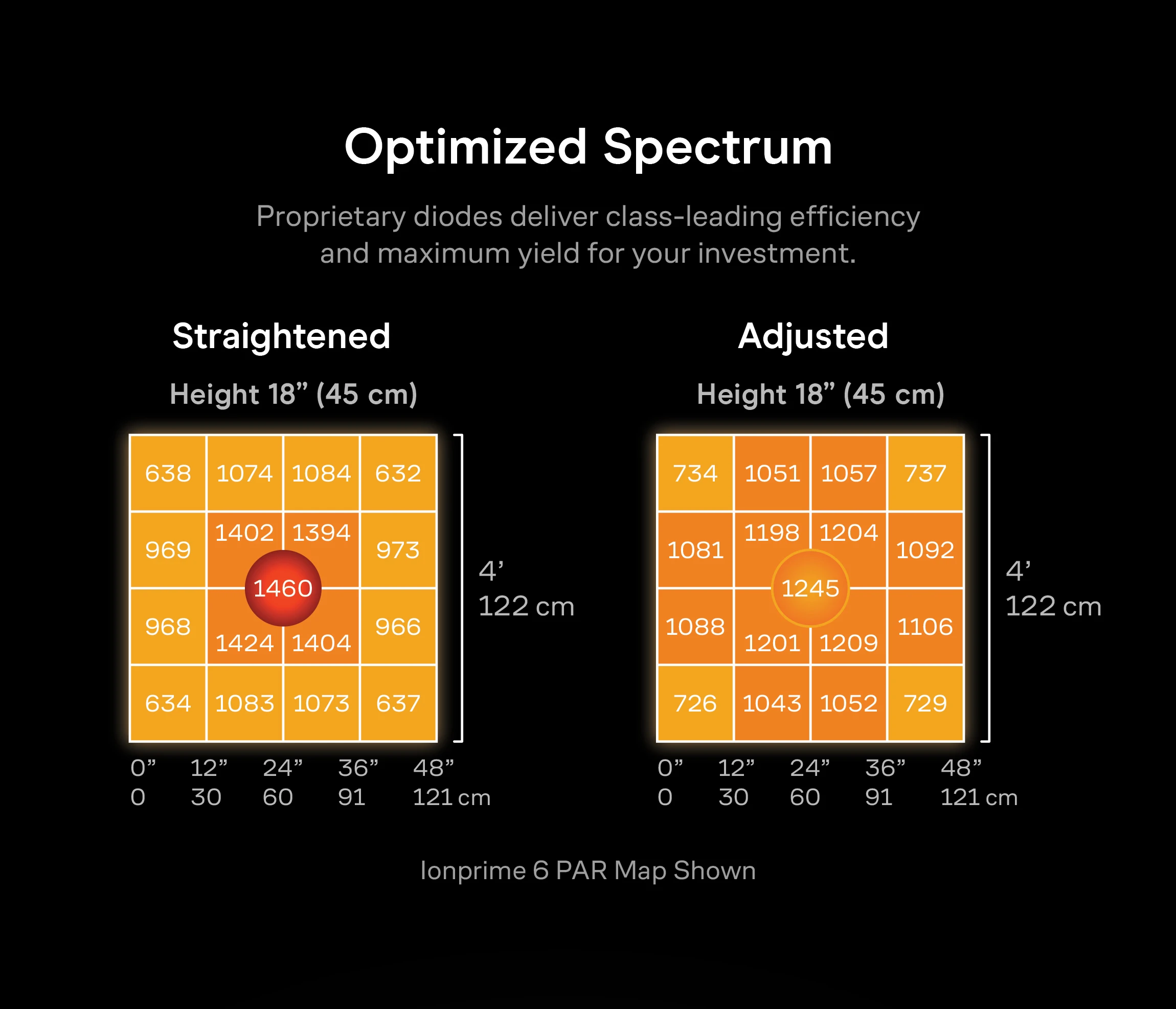

See the Difference in the PAR Map

The benefit of IONPRIME's adjustable bars becomes much clearer when you look at the PAR map. The example above compares the IONPRIME 6 at an 18-inch mounting height with the bars straightened versus adjusted, showing how changing the angle can reshape the distribution of light across a 4' × 4' growing area.

With the bars straightened, the center of the canopy receives significantly more concentrated light, reaching 1,460 µmol/m²/s, while the outer areas receive lower readings. After adjusting the bars, the center reading drops to 1,245 µmol/m²/s, while the surrounding areas become more evenly illuminated, with readings generally around 1,043-1,209 µmol/m²/s.

That difference is important because maximum intensity in the center isn't always the goal. By angling the bars outward, IONPRIME can spread light more evenly across the canopy, helping reduce the gap between the strongest and weakest areas of the growing space. Instead of having plants directly beneath the fixture receive substantially more light than plants toward the edges, growers can adjust the fixture to create a more balanced distribution.

The PAR map demonstrates why the 180° adjustable-angle design is more than a physical feature. It gives growers another way to fine-tune their lighting setup based on the shape and coverage of their canopy. Whether you want to concentrate light toward the center or spread it farther across the growing area, adjusting the bars allows the light footprint to be shaped around your plants.

The PAR map shown above represents the IONPRIME 6 at an 18-inch (45 cm) mounting height over a 4' × 4' (122 cm) area. Actual readings will vary depending on mounting height, environment, fixture configuration, and other growing conditions.

Eliminate Hotspots Without Sacrificing Intensity

One common challenge with high-powered LED fixtures is hotspot formation. Because many fixtures emit the majority of their light directly downward, the center of the canopy often experiences significantly higher PPFD than the edges.

Hotspots can lead to:

• Light stress
• Bleaching
• Uneven transpiration
• Reduced environmental consistency

With adjustable LED bars, growers can redirect portions of the fixture outward to create a smoother distribution profile.

The result is:

• Better edge coverage
• Reduced central intensity spikes
• More even PAR distribution
• Improved environmental balance

Instead of lowering overall intensity to avoid hotspots, growers can simply reshape where the light is delivered.

Smarter Lighting Through Intelligent Controls

Modern indoor cultivation isn't just about brighter lights. It's about automation.

The IONPRIME Series integrates with the AC Infinity UIS™ ecosystem, giving growers precise control over lighting schedules and intensity through compatible controllers.

Features include:

• Daily lighting schedules
• Sunrise and sunset dimming
• Precise PWM dimming from 0-100%
• Power outage memory
• Remote control through compatible UIS controllers

These tools make it easier to maintain a consistent lighting routine while reducing manual adjustments.

Sunrise and Sunset Simulation

Plants don't experience instant daylight outdoors. Natural sunlight gradually increases in intensity during sunrise before fading during sunset.

IONPRIME recreates this transition automatically. Instead of lights switching from complete darkness to full brightness, sunrise and sunset dimming gradually ramps intensity up or down, helping create a more natural growing environment while reducing abrupt environmental changes.

Precise PWM Dimming

Not every stage of growth requires maximum light output. Young seedlings often require lower PPFD, while flowering plants demand much higher intensity.

The IONPRIME Series offers 0-100% PWM dimming, allowing growers to fine-tune output with precision rather than relying on a handful of preset levels.

This flexibility makes it easier to:

• Acclimate seedlings
• Reduce stress after transplanting
• Match light intensity to plant age
• Optimize energy consumption
• Fine-tune PPFD targets

Never Lose Your Settings

Unexpected power outages are frustrating enough without having to reprogram your lighting schedule afterward.

IONPRIME includes power outage memory retention, automatically restoring previous lighting settings once power returns.

For growers running carefully planned schedules, this helps maintain consistency without requiring manual intervention.

Built for Flexible Grow Spaces

Every indoor garden is different.

Some growers run perfectly level canopies inside dedicated grow tents. Others cultivate taller plants, utilize SCROG nets, or combine multiple plant varieties in a single environment.

Because each LED bar adjusts independently, the IONPRIME Series adapts to a wide range of cultivation styles.

Whether you're trying to improve side coverage, reduce center intensity, or compensate for uneven growth, the fixture gives you significantly more flexibility than traditional fixed-bar designs.

Expand as Your Garden Grows

Larger gardens often require multiple fixtures working together.

IONPRIME supports daisy-chaining multiple lights within the AC Infinity UIS platform, allowing growers to synchronize lighting schedules and control multiple fixtures from a single ecosystem. Compatible setups can support large-scale expansions using additional splitters.

This makes it easier to maintain consistent lighting across:

• Multiple grow tents
• Large cultivation rooms
• Commercial spaces
• Expanded home gardens

Which IONPRIME Model Is Right for You?

The IONPRIME Series is available in three models, each built around the same core lighting technologies but designed for different output and coverage needs. You can also explore the full AC Infinity multi-angle grow light collection to compare adjustable lighting options.

Each model shares the same core technologies:

• Independently adjustable 180° LED bars
• Proprietary full-spectrum LEDs
• Intelligent scheduling
• Sunrise and sunset dimming
• 0-100% PWM dimming
• Power outage memory
• UIS ecosystem compatibility

The primary difference is overall size and output, allowing growers to select the model that best matches their cultivation space.

The Future of Indoor Grow Lighting

LED grow lights have become dramatically more efficient over the past decade, but efficiency alone doesn't guarantee optimal plant growth.

The next evolution is adaptability.

By allowing growers to shape light distribution instead of accepting a fixed pattern, the AC Infinity IONPRIME Series offers a new level of control that can improve canopy uniformity, reduce hotspots, and make better use of every photon produced. For growers comparing adjustable lighting options, the full multi-angle grow light category provides an overview of AC Infinity's adaptable grow lighting lineup.

Combined with intelligent automation, full-spectrum performance, and seamless integration into the AC Infinity UIS platform, the IONPRIME Series represents a thoughtful approach to modern indoor cultivation.

Whether you're upgrading an existing grow room or building a new one from scratch, having the ability to customize both where your light shines and how it operates can make all the difference in creating healthier plants, more consistent growth, and more productive harvests.
